With our gear measuring system you can GearUP with WENZEL!

Gear measurement equipment


The product has some must-have features which differentiate WENZEL and serve our customers with excellence.

This new software bridges the gap that our customers face in gear manufacturing.

This new software bridges the gap that our customers face in gear manufacturing. WM | Gear provides an evolution of our standard metrology package, offering a common platform for both gear metrology and traditional inspection. Rather than creating a specialized package just to check gears, WENZEL expanded the capabilities of our world-renowned WM | Quartis. This gives customers a single solution that can handle all their metrology needs!

New GT 450 that will be at IMTS 2022
Gear Inspection up close picture

The future of the new software.

WM | QUARTIS is built on a very modular platform which supports the release of new modules as needs change in the market. No matter whether there are new standards that come out or customer-specific requirements change, WENZEL will be able to support our customers. Always adding new functionality to stay on top of any changes that will happen. What’s important, though, is that it is not just gear software, it is for inspection of all workpieces! This which means that it will grow as the market needs change, even beyond gears.

What is the WENZEL advantage?

Being vertically integrated ensures that we can deliver consistent quality products!

The WENZEL advantage is that we are completely focused on manufacturing the most reliable metrology equipment on the market. From raw materials, such as granite, all the way to final assembly, we control the entire process. Being vertically integrated in this way ensures that we can deliver consistent quality products, but also allows us the flexibility to pivot and adapt as the market demands. For example, during 2020, we designed, manufactured, and delivered a brand-new system for a customer in less than six months, helping them meet their production needs and giving us a new standard product to offer.

What else is new about the WENZEL systems?

The system streamlines the entire process! Offering better delivery and a path for modernization.

This new generation of machines will be the first to share a common machine controller with our line of CMMs. This results in streamlining the entire process offering better delivery, simplified support, and a path for modernization. New sensors, software, and machine configurations will all be designed and built around this common platform because of this we ensure that as a customer’s needs change, our technology can scale with them.

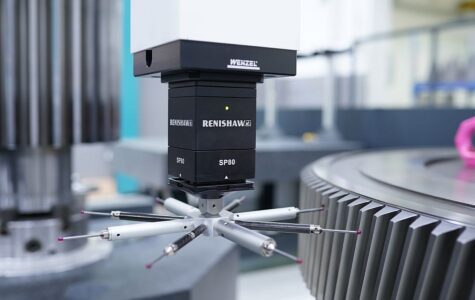

Star probe for ultimate measuring picture

In what ways is WENZEL looking to the future of metrology?

Always looking at how to stay ahead of the needs of the manufacturing environment!

As a company we strive to stay ahead of the needs of the manufacturing environment! The two primary focus areas right now are, non-contact inspection and Industry 4.0. Non-contact inspection, even with gears, can offer speed and flexibility for the right applications, helping people measure more parts faster. Industry 4.0 is not just a big buzzword; it is affecting the shop floor by changing how we use data. The question will always be: How do we connect our metrology platforms with the greater plant environment and give more transparency to what is going on to our customers. That is where our focus is right now.

For the latest product information follow us on LinkedIn! Our new gear measuring systems and traditional CMM systems will be at the Control Show in Germany, 3-6 May 2022. If you are in the area stop by at our Booth 5101 in Hall 5. It will be great to meet you. We will also be at IMTS in September and you are invited to visit our Booth where our product experts will be ready to answer any questions you might have!
