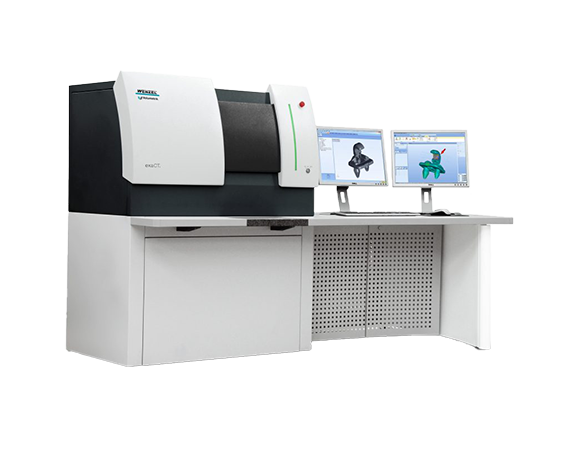

The integrated desk on the exaCT M serves as a workspace for measurement and data analysis forming a perfectly designed, ergonomic workstation.
The exaCT M is based on a workstation-concept, which unites high X-ray performance and high scan speeds on a small footprint. The exaCT M CT workstation has an integrated evaluation unit in a common desk workstation. The compact design, the well thought-out ergonomics and the idea to combine more power and flexibility with less space requirements characterize the system. The workstation version enables easy loading and is ideally suitable for automating measuring and testing processes.
The exaCT M is based on a modular system concept with an exceptional system stability. The result is a device that is not only partially superior, but point by point to comparable devices. The integrated desk serves as a workspace for measurement and data analysis forming a perfectly designed, ergonomic workstation. Software, service, consultation and training are also integrated.
Above all, the performance and the user friendliness of the integrated application software ensure that the full extent of the innovative device concept of the exaCT M is brought to bear. The exaCT control data acquisition software for optimized control of the computer tomography and the exaCT Volume reconstruction software for precise calculation of the volume data was developed by Wenzel.
The evaluation software of the exaCT has a direct link to the proven software products of Metrosoft QUARTIS and PointMaster. Interfaces to other evaluation software packages such as VGStudio MAX are also offered.
With a measuring volume of 250 mm in height and 150 mm in diameter, the exaCT M Workstation is used for measuring and testing technology for small to medium-sized components. The exaCT M is particularly suitable for non-destructive testing of plastics, light metals, composites and multi-materials.
